Manufacturer Code
CS00070
Hyd Home Warranty
Description:

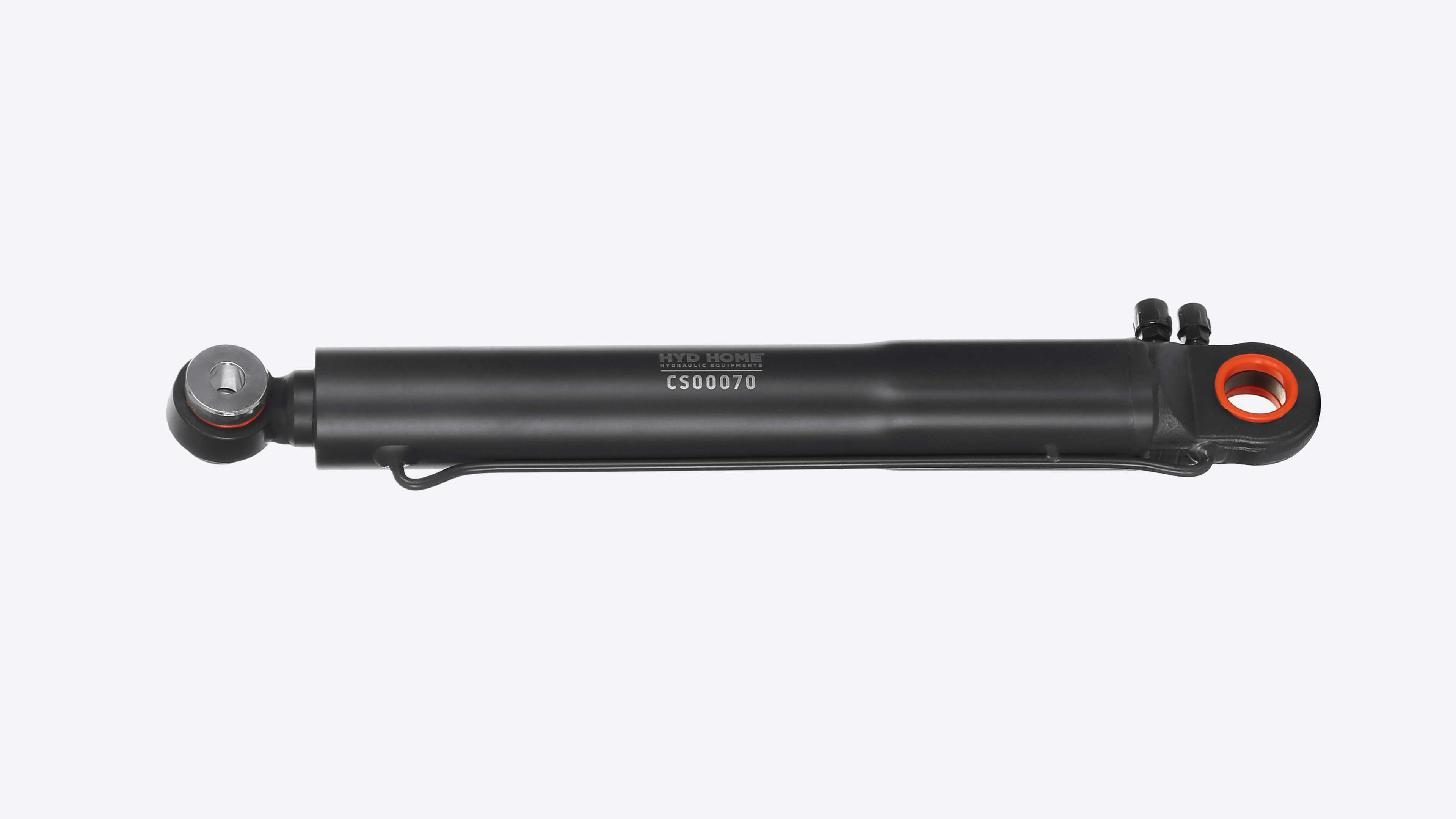

Cabin Tilting Cylinder

Vehicle:
SCANIA
Oem Number::
1720927 SCANIA
1511922 SCANIA
Specifications:
DIAMETER 1 [MM] 60
DIAMETER 2 [MM] 38
BORE 1 ⌀ [MM] 30
BORE 2 ⌀ [MM] 16[25]
LENGTH [MM] 500
STROKE [MM] 335
TOLERANCE [MM] ± 3 MM
THREAD SIZE 1 M14x1,5
THREAD SIZE 2 M12x1,5
PRESSURE [BAR] 250
WEIGHT [KG] 8.750
PACKAGING [CM] 60x13x8
